Vaccum Roll Equipment

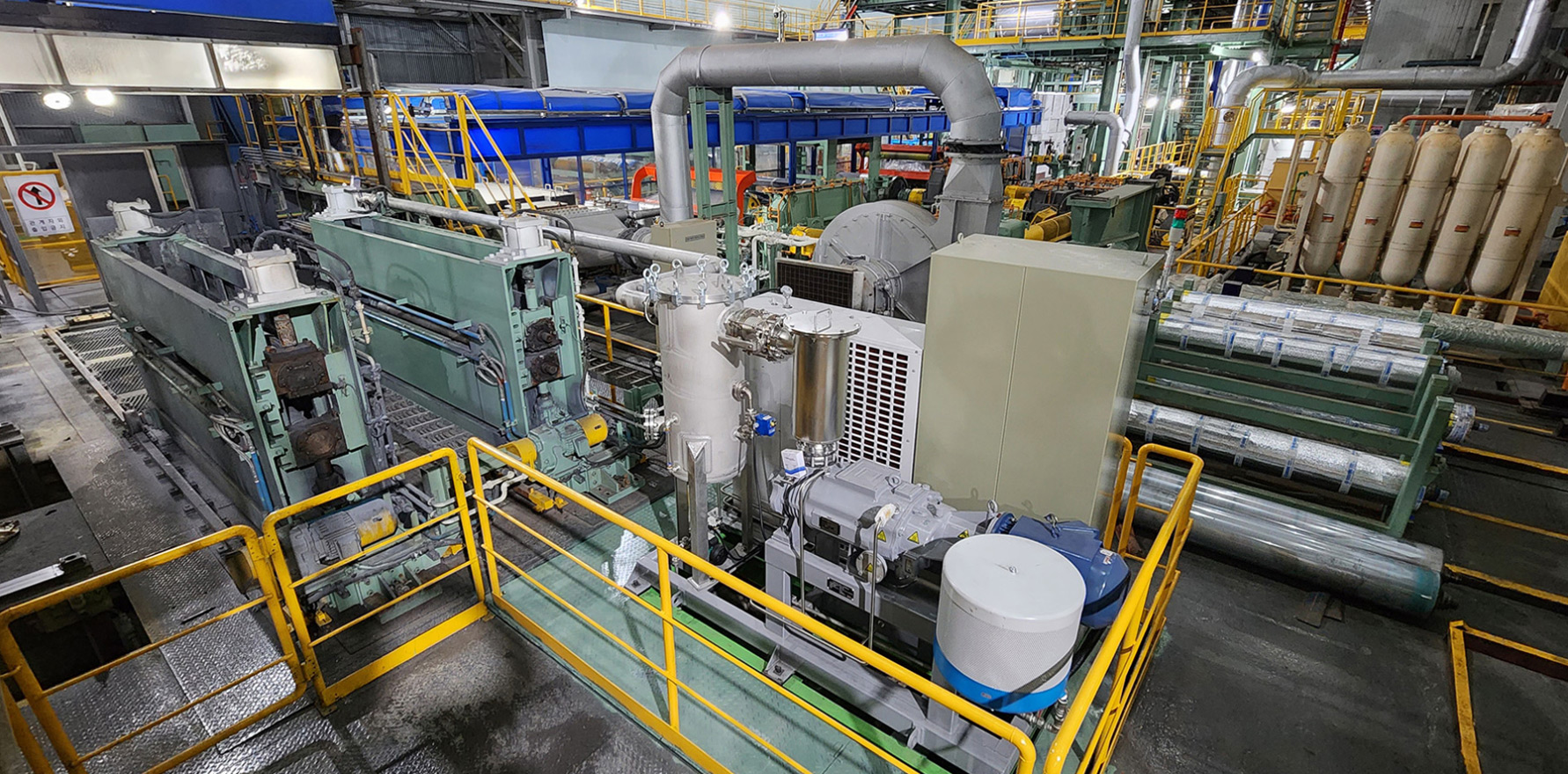

Vaccum Roll Equipment for Coil

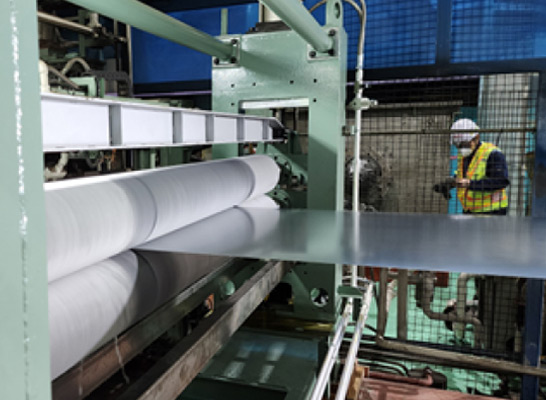

A specialized roll, created by compressing ultra-fine microfiber nonwoven material onto a hollow-structured shaft. Designed for connection to the KVS vacuum system, it is purpose-built to ensure complete removal of fine residual liquids from sheet material surfaces.

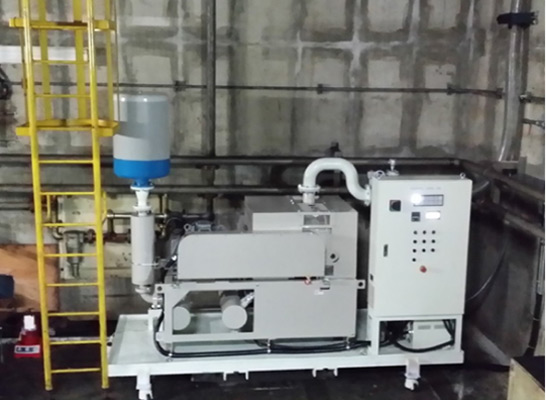

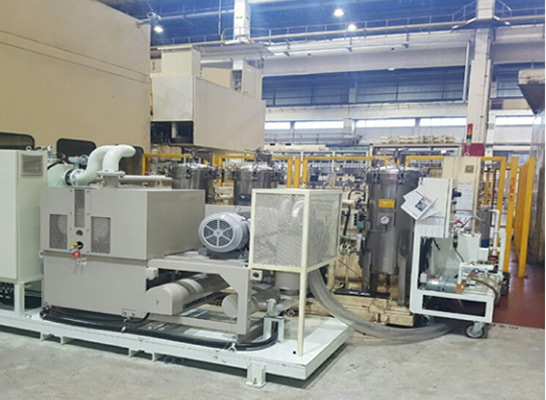

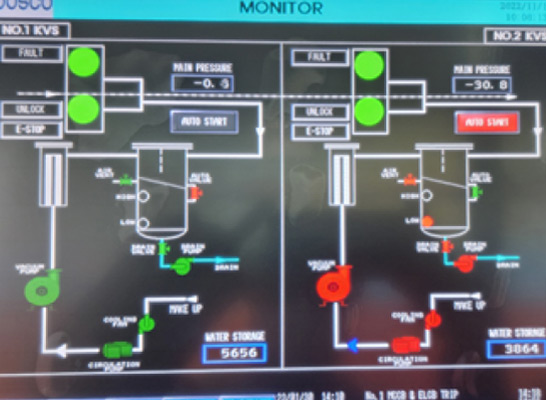

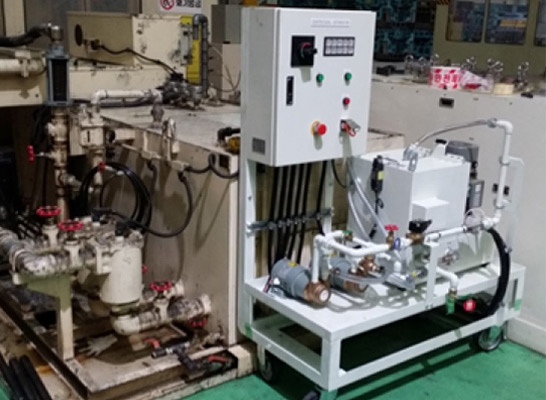

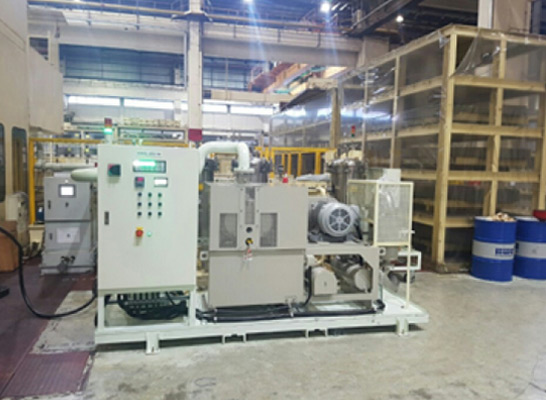

A total vacuum system that delivers the vacuum pressure generated by the pump directly to the KVS Roll, enabling efficient absorption and discharge of solution from the roll surface.

Components

[ Main ]
- Vacuum Roll 1 set (Upper/Lower Roll)

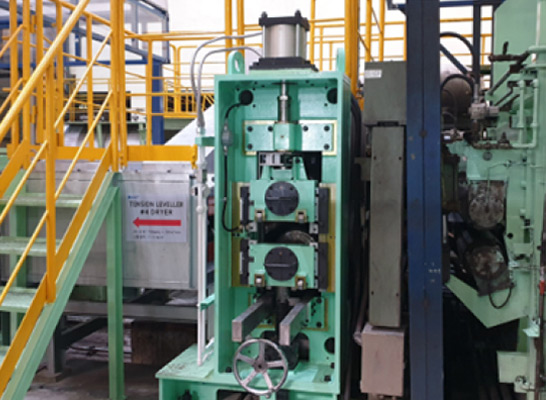

- Roll Frame

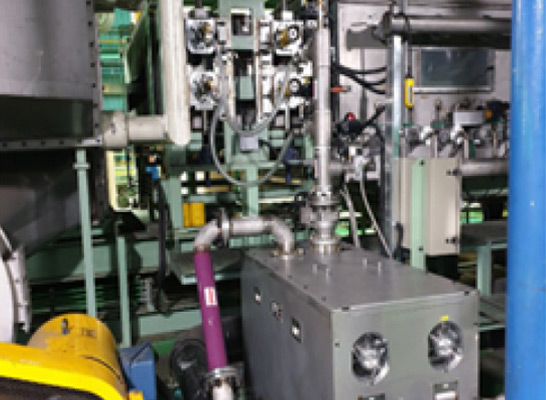

- Vacuum Pump
[ Auxiliary ]
- Separate Tank
- Cooling System
- Filter

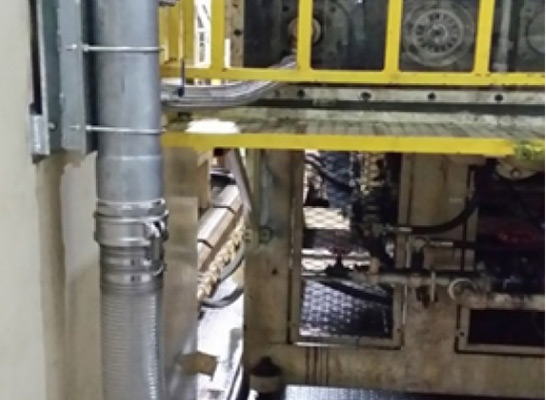

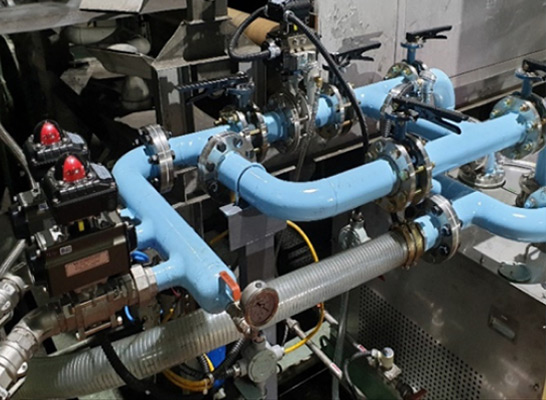

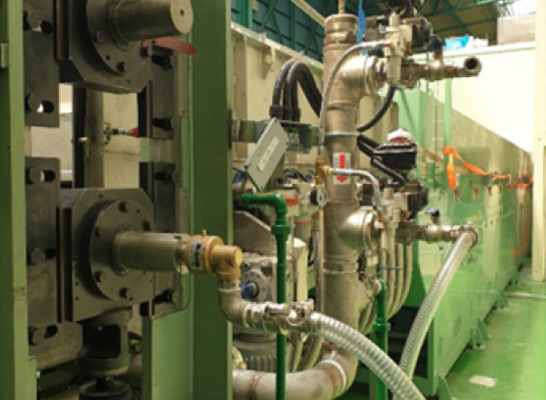

- Drain Pump & Piping
[ Control System ]

Applications

Steel and non-ferrous continuous strip production lines
Film and resin production fields
PCB, FPC, and precision material fields
Textile and non-woven fiber material fields

Supply Record

POSCO and affiliates
Hyundai Steel and affiliates
Cold-rolling customers such as Dongkuk Steel, Samwoo Steel
Color-coated steel producers including Dongkuk CM, Seah CM, DCM
Non-ferrous metal producers including Poongsan, Ulsan Aluminum
LG Chem
Secondary battery separator film producers
Various thin-sheet and precision material manufacturers

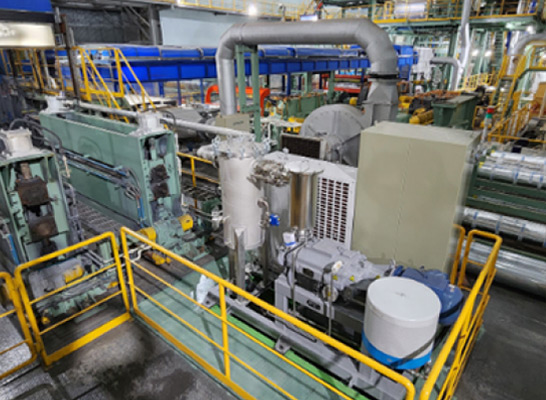

More than 50 installations supplied

H Company Dangjin

H Company Suncheon

D Company Busan CCL

D Company Yangsan CCL

P Company Pohang

P Company Gwangyang

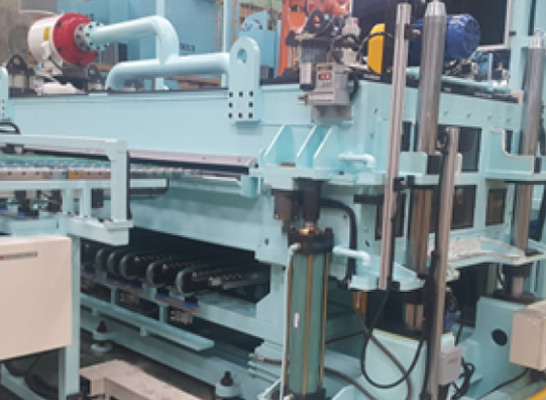

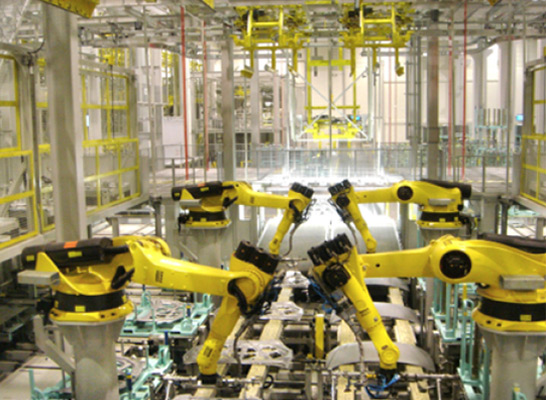

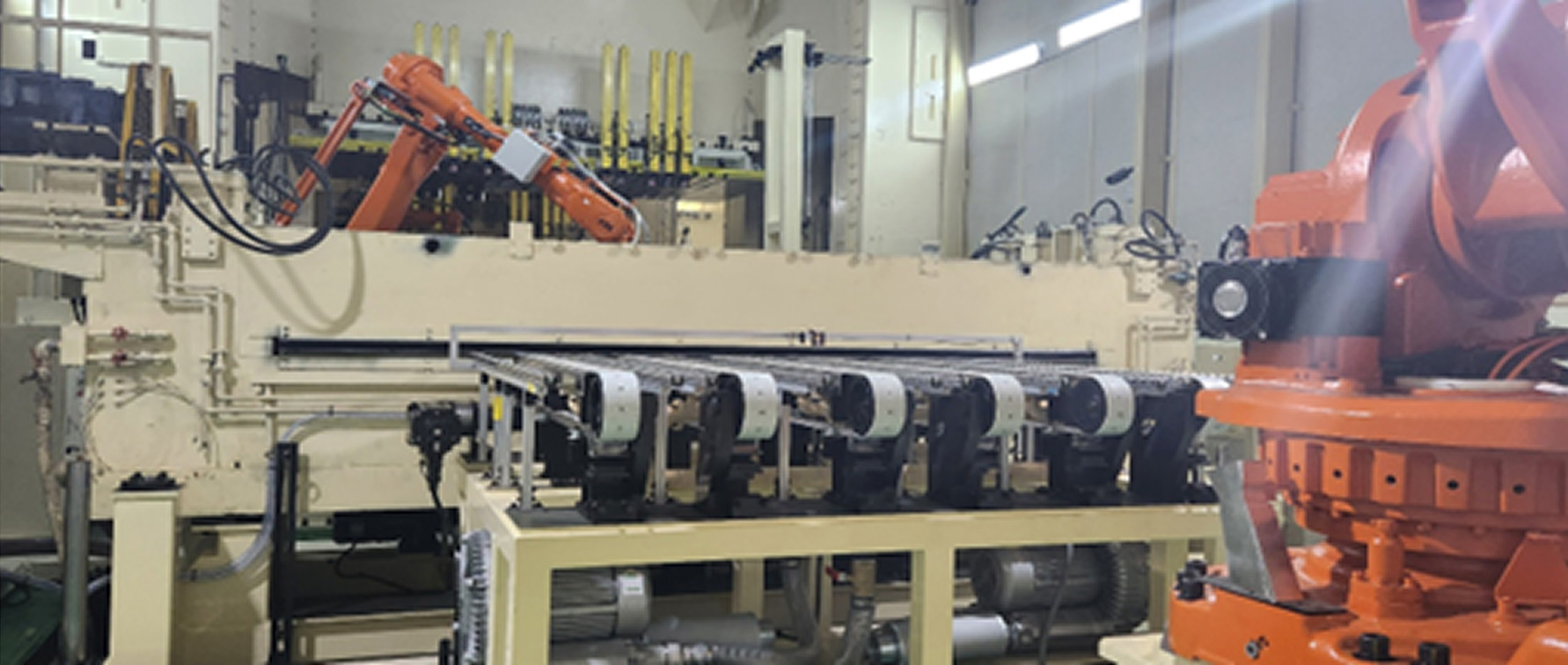

Washing Unit & Destacker for Automotive with Vacuum Roll System

Washing Unit

Equipment Types

Wet Type
- A cleaning method that uses washing oil, effective for removing oil and dust from product surfaces. Brush Rolls, Non-Woven Wringer Rolls, and Vacuum Rolls are applied to control residual oil on the surface and improve press workability.
Dry Type
- A method that removes foreign substances using brushes (belt or roll type) and air (air blowers and suction). Compared to wet systems, it features a simpler mechanical structure.
Hybrid Type
- A method that combines the advantages of both wet and dry systems for highly effective contaminant removal. It can be customized according to the requirements of each press line, allowing flexibility across various production conditions.

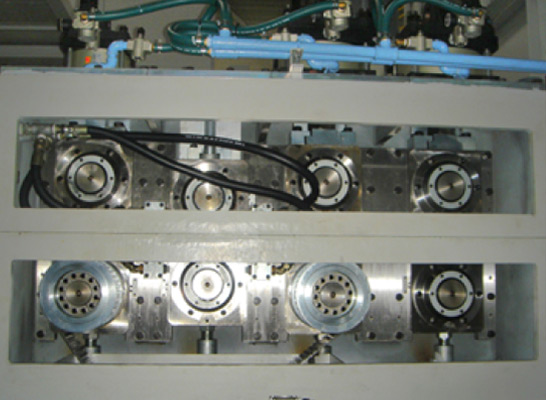

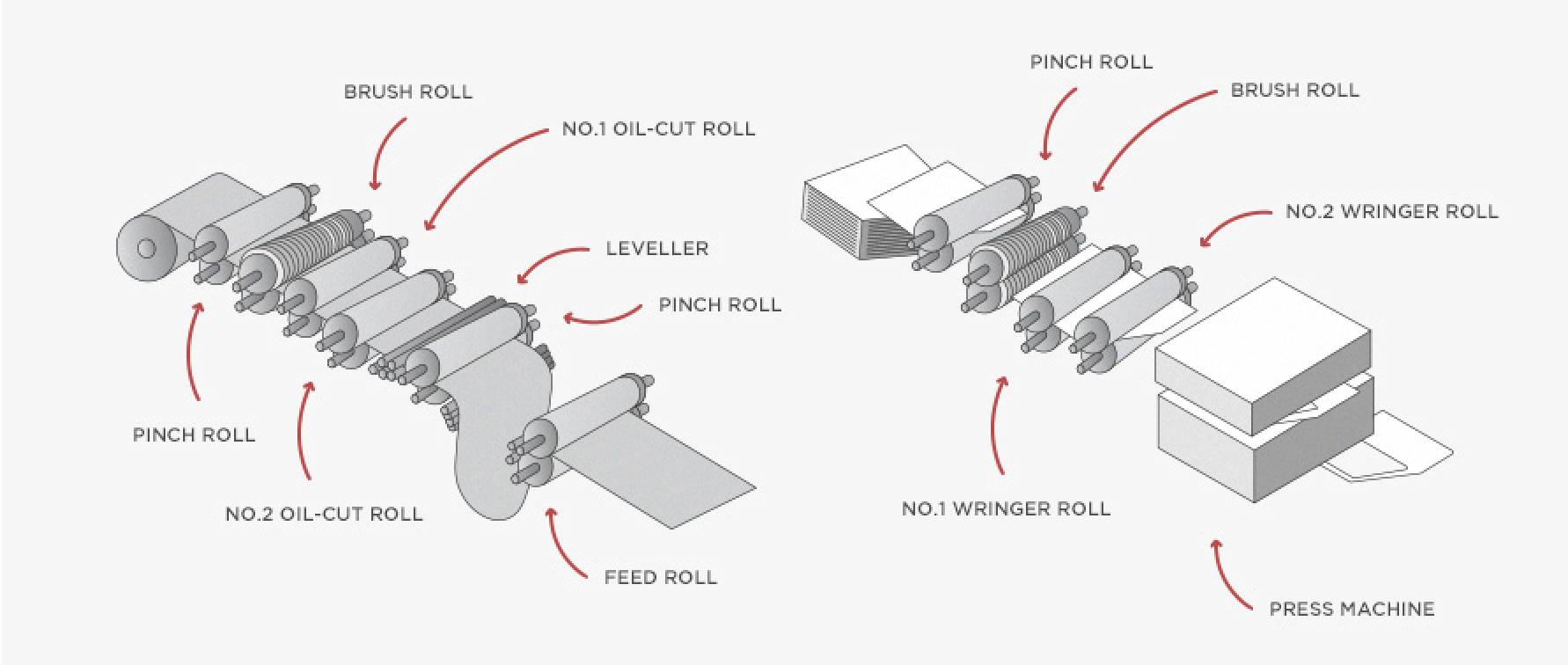

Equipment Components (Wet Washing Unit)

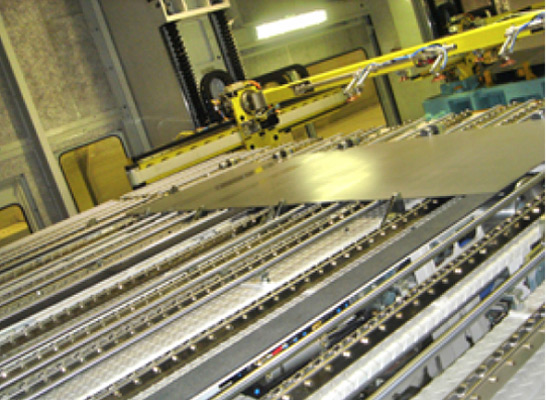

In/Out Conveyor
- Transfers blanks or coils and aligns material before and after the washing process.
Spray Nozzle
- Cleans the product surface by spraying washing oil.

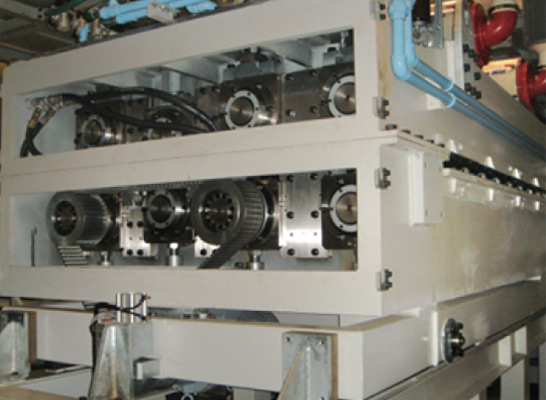

Brush Roll
- Performs mechanical cleaning of blank or coil surfaces.

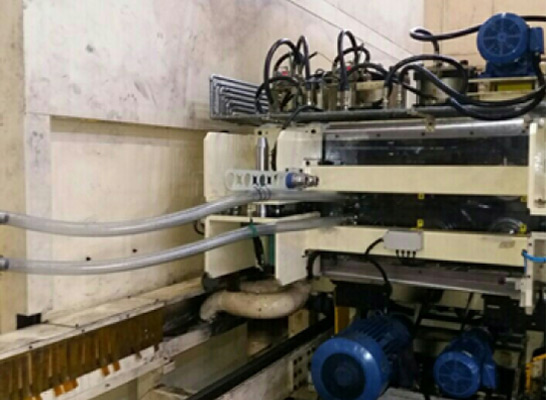

Wringer Roll, Vacuum Roll
- Performs oil cutting and suction functions according to on-site requirements.
Filter and Circulation System
- Filters and recirculates washing oil for reuse.
Control Panel
- Controls the overall operation of the Washing Unit.

Applications and Specifications

Reduction in transportation cost: No need to move the brush shaft, reducing transportation cost and time associated with shipping Brush Rolls in and out of the facility.

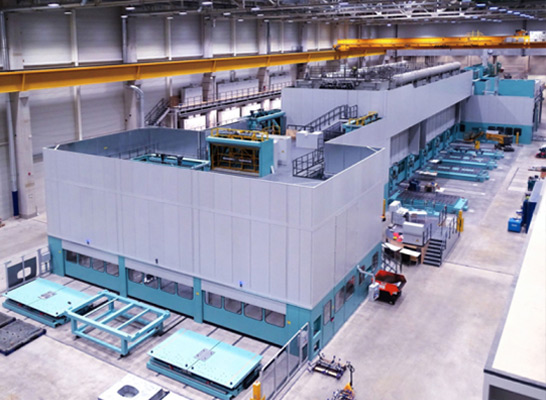

Automotive Press: Washing Unit / Blanking Line
Production Speed: Max 15 SPM

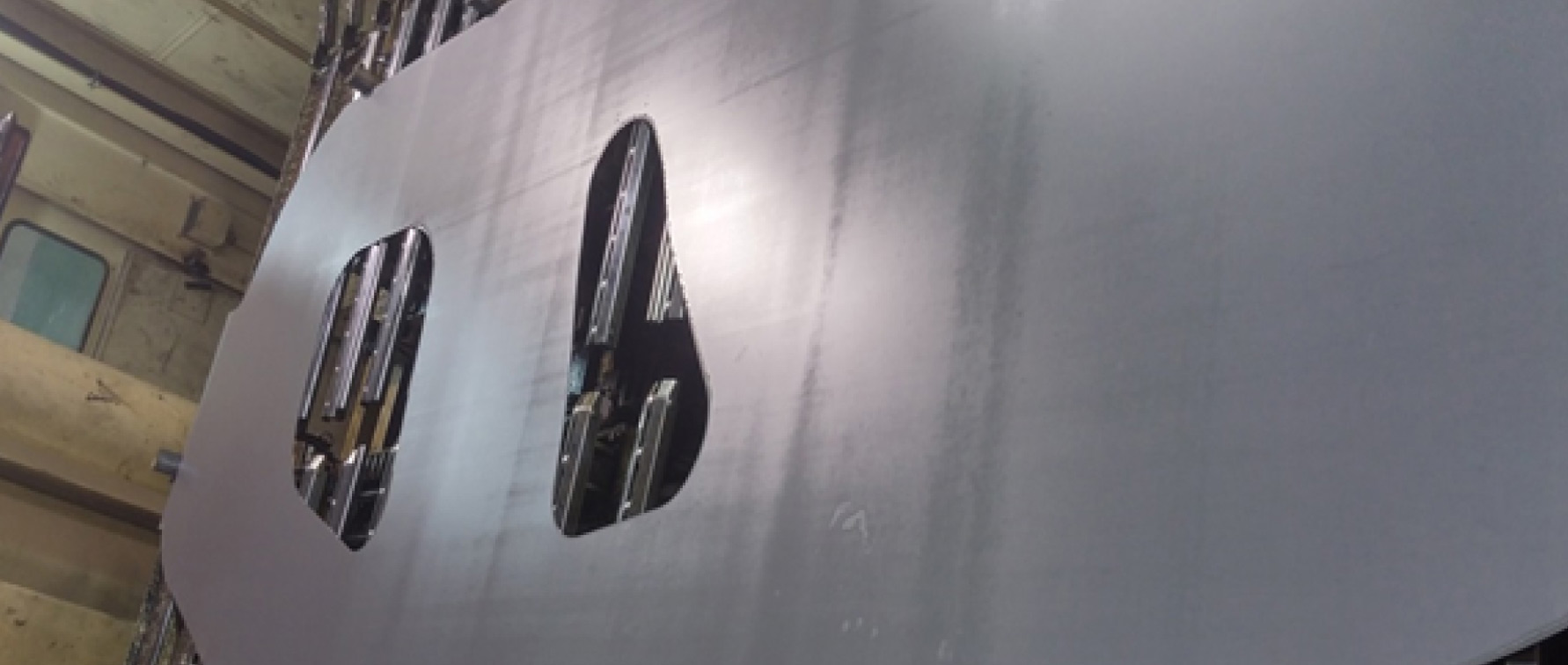

Applicable Materials: Steel, Aluminum, TWB
Material Size: Max 4,300 mm × 2,000 mm / Min 800 mm × 500 mm

Supply Record

OEMs and Vendors
- Hyundai Motor Company, Ulsan Plant / Asan Plant
- Renault Korea
- Howon Auto Co., Ltd., Pyeongtaek Plant / Gwangju Plant / Turkey Plant
- Shinyoung Co., Ltd.

Automotive

Non-Tex Rolls (Pinch Roll, Wringer Roll, Feeder Roll) applied inside OEM Washing Units.
OW90H non-woven material applied through technical collaboration with Toho Yogyo (Japan).
